Dico 3PC Floating API Flange Ball Valve
| Min. Order: | 1 Piece/Pieces |
|---|
| Packaging: | plywood case |
|---|---|
| Brand: | OEM |
| Transportation: | Ocean,Land,Air,Express,Express |
| Place of Origin: | China |
| Supply Ability: | 100000 |
| Certificate: | ISO9001 |
| HS Code: | 8481804090 |
| Port: | Ningbo,Shanghai |
Basic Info
Model No.: Q41F
Product Description
Product Description
3PC Flange Stainless Steel API Ball Valve with ISO5211 Mounting Pad with locking device
Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
wenzhou dico valve technology co.,ltd
we have manual type and munting pad type

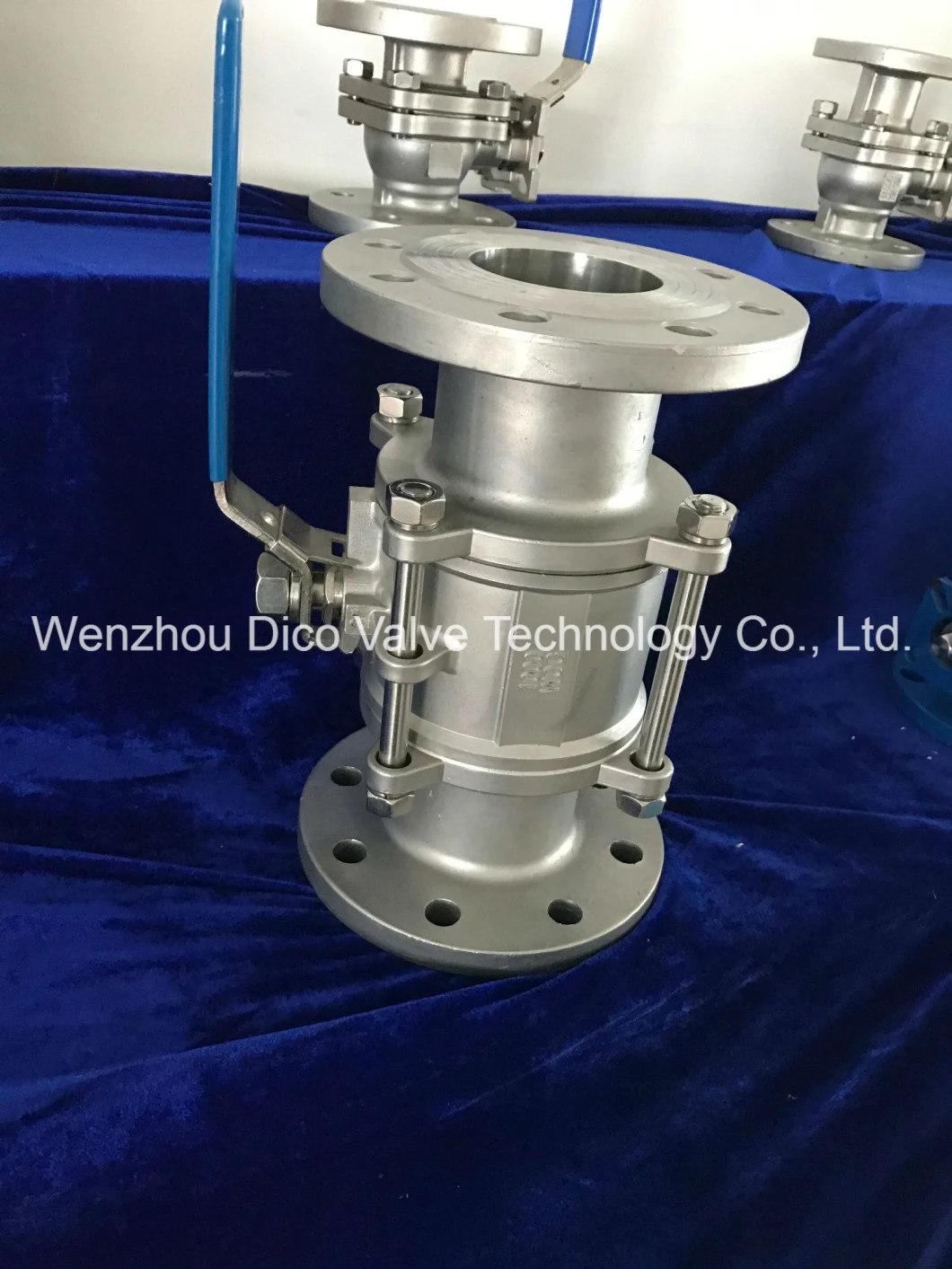

manual type as below:

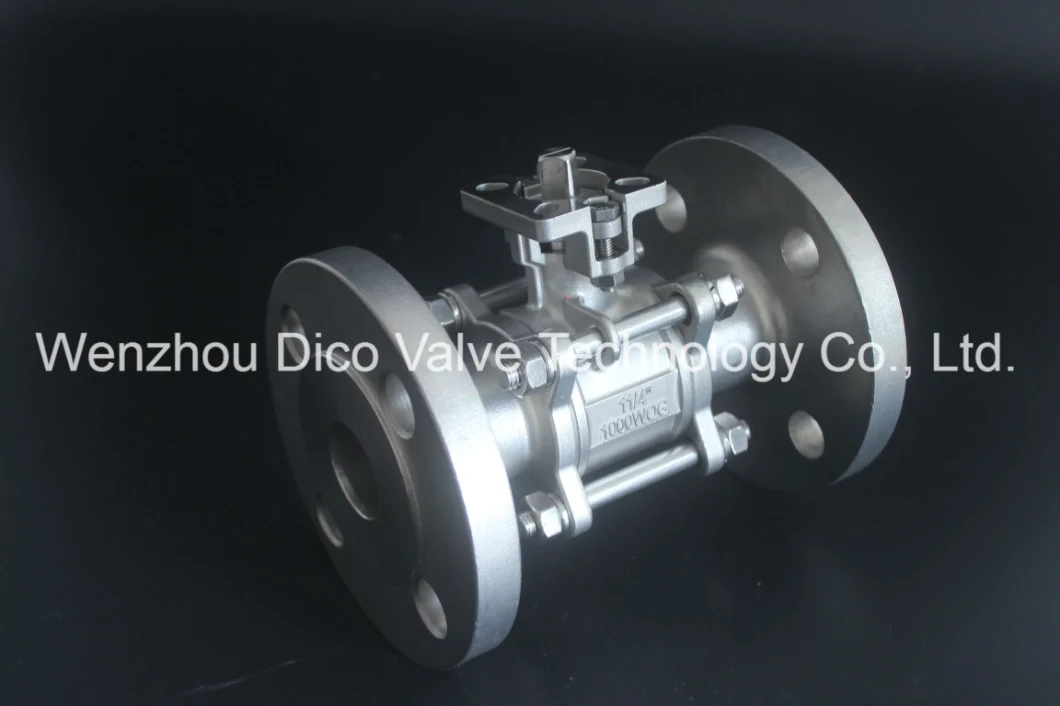

new type 3pc flange ball valve with mounting pad as below:
SIZE UNIT:mm
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
PackageFAQ
Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing ball valve 15 years .
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q:How about your capacity?
A:As you know,we have 100staffs,own 50 CNC machines,and five person
in charge of quality inspection. So please believe us we can deliver valves as your order.
3PC Flange Stainless Steel API Ball Valve with ISO5211 Mounting Pad with locking device
Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
wenzhou dico valve technology co.,ltd
we have manual type and munting pad type
manual type as below:
new type 3pc flange ball valve with mounting pad as below:
| SIZE | SIZE | L-PN16 | L-150LB | L-300LB | L-10K | L-PN40 | E | H | |
| DN15 | 1/2" | 130 | 108 | 140 | 108 | 115 | 132 | 72 | |
| DN20 | 3/4" | 140 | 117 | 152 | 117 | 120 | 132 | 72 | |
| DN25 | 1" | 150 | 127 | 165 | 127 | 125 | 170 | 88 | |
| DN32 | 1-1/4" | 165 | 140 | 178 | 140 | 130 | 170 | 92 | |
| DN40 | 1-1/2" | 180 | 165 | 190 | 165 | 140 | 230 | 125 | |
| DN50 | 2" | 230 | 178 | 216 | 178 | 150 | 230 | 136 | |
| DN65 | 2-1/2" | 250 | 190 | 241 | 190 | 170 | 230 | 155 | |
| DN80 | 3" | 290 | 203 | 283 | 203 | 180 | 300 | 163 | |
| DN100 | 4" | 310 | 229 | 305 | 229 | 190 | 300 | 178 |
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
| Product Name | 2PC Stainless Steel Flange Ball Valve 150LB 300LB 600LB |
| 1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC |
| 2. Size | 1/2''~10'' ( DN15~DN250) |
| 3. Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~600LB |
| 6. Connection Ends | Flange(RF/RTJ) |
| 7. Working Temp. | -196ºC~450ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM/ODM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
PackageFAQ
Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing ball valve 15 years .
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q:How about your capacity?
A:As you know,we have 100staffs,own 50 CNC machines,and five person
in charge of quality inspection. So please believe us we can deliver valves as your order.
